Precision Expanding Die w/ Mandrel
Product Catalog
The Precision Expanding Die offers the handloader unparalleled control over the I.D. of their case necks (neck tension).
Precision Expanding Dies are machined on CNC Lathes and heat-treated to ensure dimensional integrity and durability for a lifetime of use. The unique angled alignment surfaces of the Die Body and Mandrel ensure perfect alignment when assembled and secured with the threaded retention plug and lock ring.

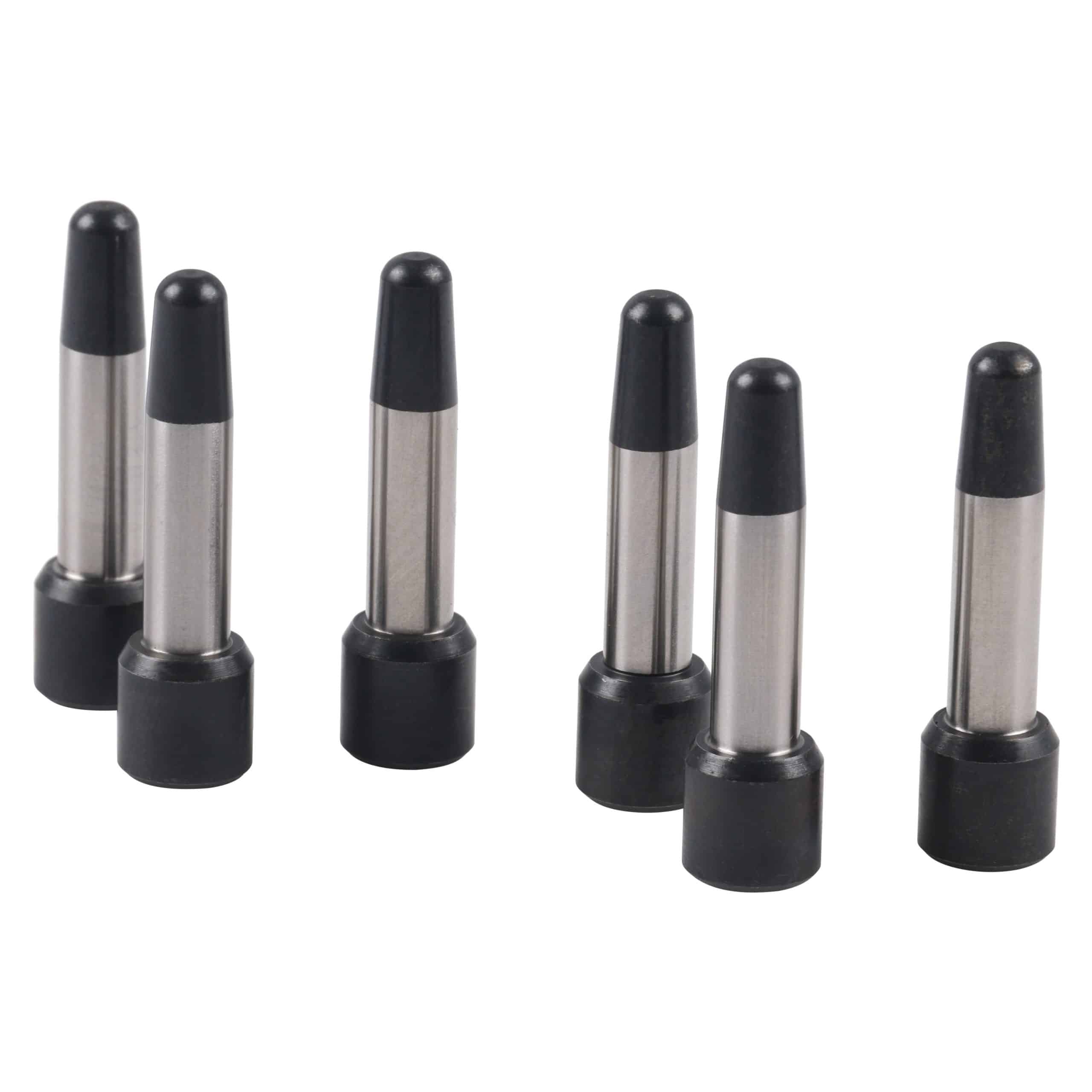

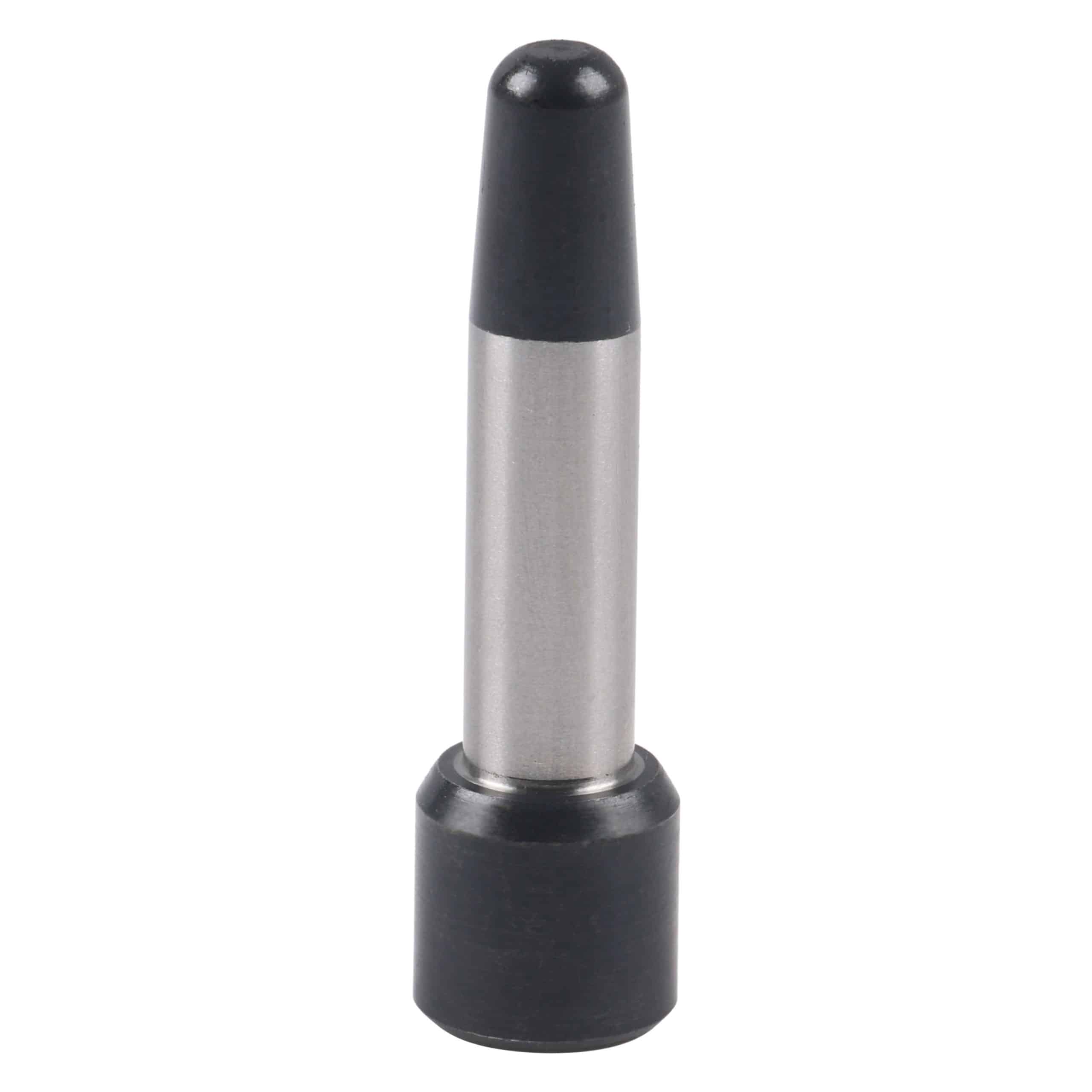

Precision Expander Mandrels are machined from high-quality tool steel which is then hardened and precision-ground to their final diameter (size marked on head). They are available in .0005” diameter increments ranging from .0005” thru .0030 below nominal bullet diameter so that neck tension can be fine-tuned to suit the handloader’s preference.
The Precision Expanding Die is factory-assembled with one mandrel that is .0010” below nominal bullet diameter per caliber (22-338). Other Precision Mandrel Sizes are available separately.
| Description | Item # |
|---|---|
| 0.2235 Expanding Mandrel (.22 Cal) | 21500 |
| 0.2230 Expanding Mandrel (.22 Cal) | 21501 |
| 0.2225 Expanding Mandrel (.22 Cal) | 21502 |
| 0.2220 Expanding Mandrel (.22 Cal) | 21503 |
| 0.2215 Expanding Mandrel (.22 Cal) | 21504 |
| 0.2210 Expanding Mandrel (.22 Cal) | 21505 |
| Precision Expanding Die w/ .2230 Mandrel (.22 Cal) | 21506 |
| 0.2425 Expanding Mandrel (.243/ 6MM Cal) | 21507 |
| 0.2420 Expanding Mandrel (.243/ 6MM) | 21508 |
| 0.2415 Expanding Mandrel (.243/ 6MM) | 21509 |
| 0.2410 Expanding Mandrel (.243/ 6MM) | 21510 |
| 0.2405 Expanding Mandrel (.243 / 6MM Cal) | 21511 |
| 0.2400 Expanding Mandrel (.243 / 6MM Cal) | 21512 |
| Precision Expanding Die w/.2420 Mandrel (.243 / 6MM Cal) | 21513 |
| 0.2565 Expanding Mandrel (.257 Cal) | 21514 |
| 0.2560 Expanding Mandrel (.257 Cal) | 21515 |
| 0.2555 Expanding Mandrel (.257 Cal) | 21516 |
| 0.2550 Expanding Mandrel (.257 Cal) | 21517 |
| 0.2545 Expanding Mandrel (.257 Cal) | 21518 |
| 0.2540 Expanding Mandrel (.257 Cal) | 21519 |
| Precision Expanding Die w/ .2560 Mandrel (.257 Cal) | 21520 |
| 0.2635 Expanding Mandrel (.264/ 6.5 MM Cal) | 21521 |
| 0.2630 Expanding Mandrel (.264/ 6.5 MM Cal) | 21522 |
| 0.2625 Expanding Mandrel (.264/ 6.5 MM Cal) | 21523 |
| 0.2620 Expanding Mandrel (.264/ 6.5 MM Cal) | 21524 |
| 0.2615 Expanding Mandrel (.264/ 6.5 MM Cal) | 21525 |
| 0.2610 Expanding Mandrel (.264/ 6.5 MM Cal) | 21526 |
| Precision Expanding Die w/ .2630 Mandrel (.264 /6.5 MM Cal) | 21527 |
| 0.2765 Expanding Mandrel (.277 / 6.8MM Cal) | 21528 |
| 0.2760 Expanding Mandrel (.277 / 6.8MM Cal) | 21529 |
| 0.2755 Expanding Mandrel (.277 / 6.8MM Cal) | 21530 |
| 0.2750 Expanding Mandrel (.277 / 6.8MM Cal) | 21531 |
| 0.2745 Expanding Mandrel (.277 / 6.8MM Cal) | 21532 |
| 0.2740 Expanding Mandrel (.277 / 6.8MM Cal) | 21533 |
| Precision Expanding Die w/ .2760 Mandrel (.277 / 6.8MM Cal) | 21534 |
| 0.2835 Expanding Mandrel (.284 / 7MM Cal) | 21535 |
| 0.2830 Expanding Mandrel (.284 / 7MM Cal) | 21536 |
| 0.2825 Expanding Mandrel (.284 / 7MM Cal) | 21537 |
| 0.2820 Expanding Mandrel (.284 / 7MM Cal) | 21538 |
| 0.2815 Expanding Mandrel (.284 / 7MM Cal) | 21539 |
| 0.2810 Expanding Mandrel (.284 / 7MM Cal) | 21540 |

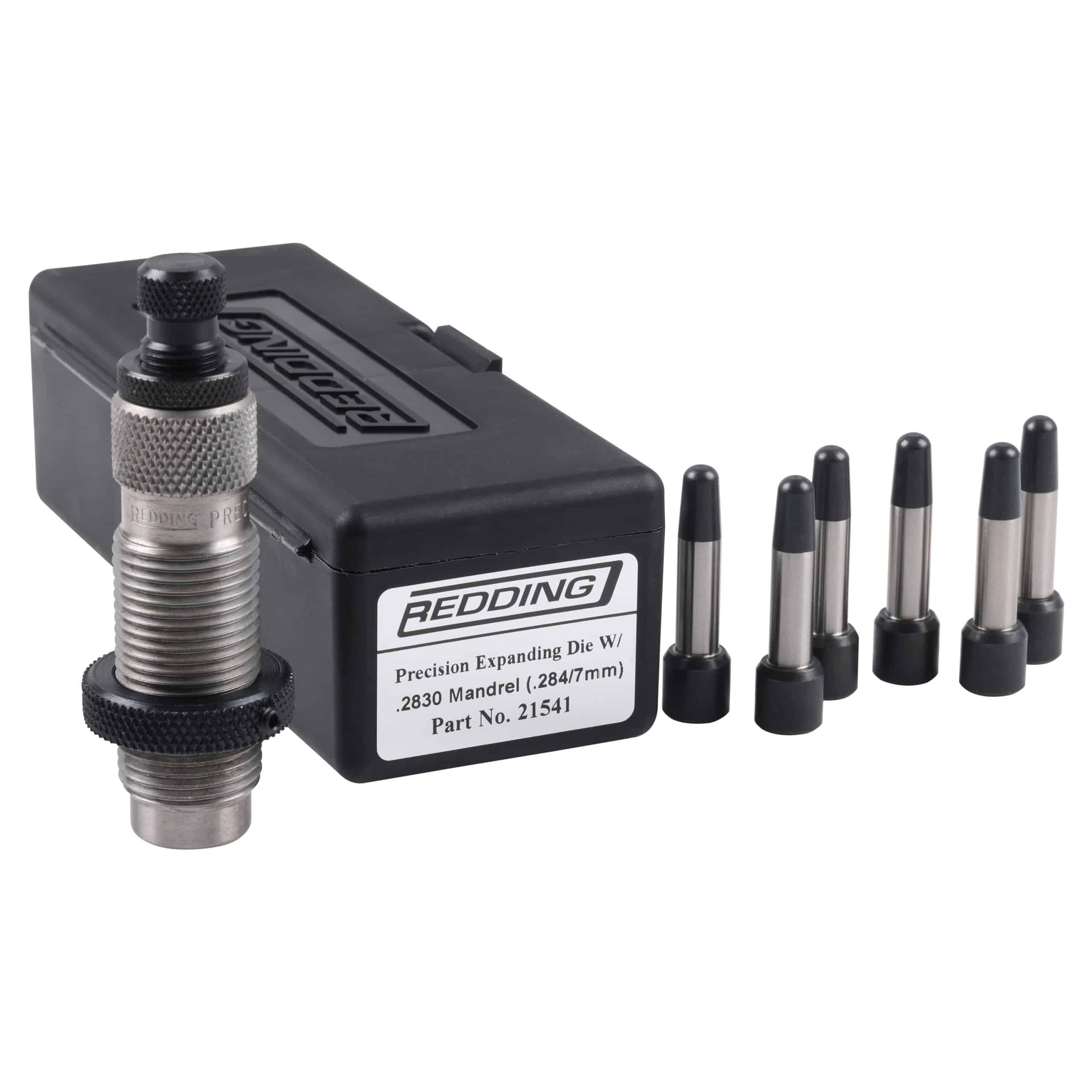

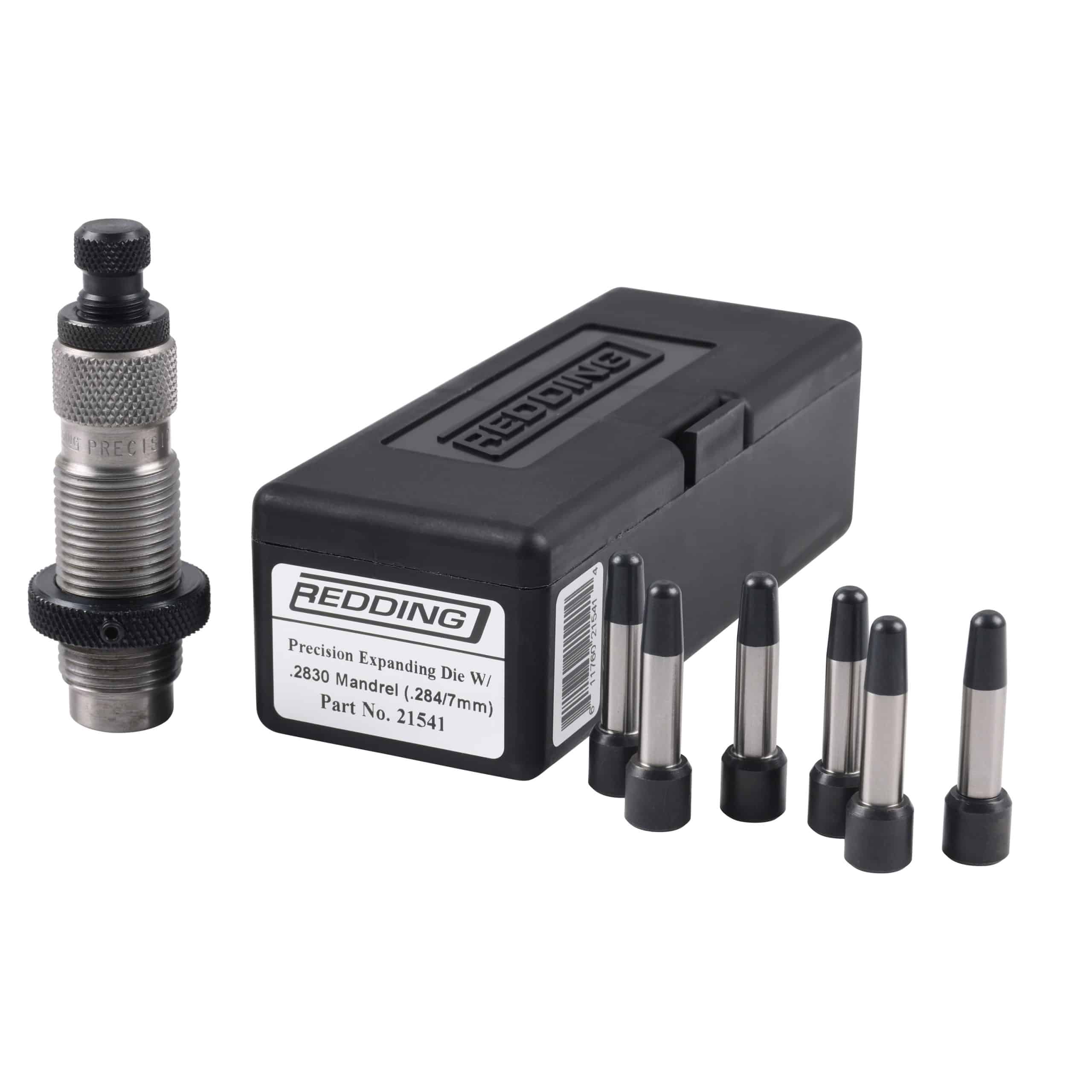

| Precision Expanding Die w/ .2830 Mandrel (.284 / 7MM Cal) | 21541 |
| 0.3075 Expanding Mandrel (.308 Cal) | 21542 |
| 0.3070 Expanding Mandrel (.308 Cal) | 21543 |
| 0.3065 Expanding Mandrel (.308 Cal) | 21544 |
| 0.3060 Expanding Mandrel (.308 Cal) | 21545 |
| 0.3055 Expanding Mandrel (.308 Cal) | 21546 |
| 0.3050 Expanding Mandrel (.308 Cal) | 21547 |
| Precision Expanding Die w/ .3070 Mandrel (.308 Cal) | 21548 |
| 0.3375 Expanding Mandrel (.338 Cal) | 21549 |
| 0.3370 Expanding Mandrel (.338 Cal) | 21550 |
| 0.3365 Expanding Mandrel (.338 Cal) | 21551 |
| 0.3360 Expanding Mandrel (.338 Cal) | 21552 |
| 0.3355 Expanding Mandrel (.338 Cal) | 21553 |
| 0.3350 Expanding Mandrel (.338 Cal) | 21554 |
| Precision Expanding Die w/ .3370 Mandrel (.338 Cal) | 21555 |
| Expanding Mandrel Die Body w/Die Plug /Lock Ring | 21560 |
| Precision Expanding Die Plug | 21561 |
