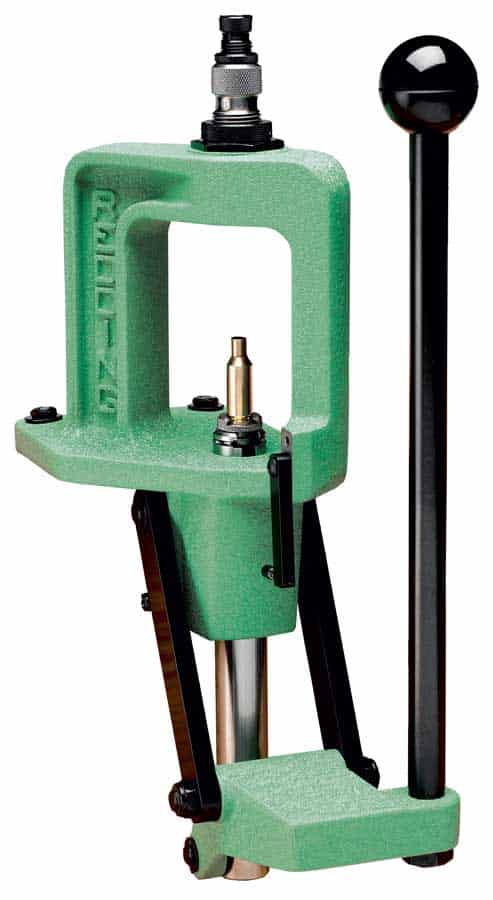

The Big Boss II and original Big Boss Reloading Presses
Product Catalog
These top of the line single station presses have the largest window opening and longest usable ram stroke of any in their class.
Spent Primer Collection System, available on the Boss II
Spent primers automatically drop through the large diameter hollow ram into a handy flexible plastic tube that can hold hundreds of spent primers before emptying, or be easily routed to your trash container.
Smart Primer Arm Assembly
- Large Item No. 99502
- Small Item No. 99501
Quickly change primer size by simply exchanging the entire primer arm assembly.
Now supplied with both large and small primer arms.
Optional Die Bushing – Item No. 70030
Designed for 1″ – 14 die threads
To order, please see table below.
| Cartridge | Big Boss Press Kit | Big Boss II Press Kit |
|---|---|---|
| 204 Ruger | 79287 | 97287 |
| 221 Remington Fireball | 79101 | 97101 |
| 22 Hornet | 79102 | 97102 |
| 22 Nosler | 79768 | 97768 |
| 222 Remington | 79109 | 97109 |
| 22-250 Remington | 79106 | 97106 |
| 223 Remington | 79111 | 97111 |
| 224 VALKYRIE | 79387 | 97387 |
| 243 Winchester | 79114 | 97114 |
| 6MM Remington | 79115 | 97115 |
| 25-06 Remington | 79120 | 97120 |
| 257 Roberts | 79125 | 97125 |
| 260 Remington | 79531 | 97531 |
| 6.5 Creedmoor | 79446 | 97446 |
| 6.5MM/284 Win (Norma) | 79415 | 97415 |
| 6.5 x 55 Swedish | 79132 | 97132 |
| 6.5 PRC | 79487 | 97487 |
| 270 Winchester | 79135 | 97135 |
| 270 WSM | 79255 | 97255 |
| 7mm-08 Remington | 79139 | 97139 |
| 7MM Remington Mag | 79136 | 97136 |
| 7MM x 57 Mauser | 79138 | 97138 |
| 7MM PRC | 79936 | 97936 |
| 280 Ackley Improved | 79428 | 97428 |
| 30-30 Winchester | 79146 | 97146 |
| 30-06 Springfield | 79148 | 97148 |
| 300 PRC | 79776 | 97776 |
| 300 Remington Ultra Mag | 79288 | 97288 |
| 300 WSM | 79223 | 97223 |
| 300 Winchester Mag | 79153 | 97153 |
| 300 Weatherby Mag | 79252 | 97252 |
| 308 Winchester / 307 Winchester | 79155 | 97155 |
| 8MM x 57 Mauser | 79159 | 97159 |
| 338 Winchester Magnum | 79163 | 97163 |
| 375 H&H Magnum | 79169 | 97169 |
| 30 M1 Carbine | 79180 | 97180 |
| 32 Smith & Wesson Long | 79158 | 97158 |
| 32 H & R Magnum * | 79161 | 97161 |
| 32 S & W Long/32 H & R Mag | 79162 | 97162 |
| 9MM Luger | 79172 | 97172 |
| 38 Special | 79183 | 97183 |
| 357 Magnum | 79182 | 97182 |
| 38 Spec/357 Mag | 79184 | 97184 |
| 40 Smith & Wesson | 79272 | 97272 |
| 10MM Auto | 79520 | 97520 |
| 40 S & W/10MM Auto | 79253 | 97253 |
| 44 Special | 79187 | 97187 |
| 44 Magnum | 79186 | 97186 |
| 44 Spec/44 Mag | 79194 | 97194 |
| 44-40 Winchester | 79188 | 97188 |
| 45 ACP/45 Auto Rim | 79189 | 97189 |
| 45 Colt/454 Casull | 79191 | 97191 |
Features
Both the original Big Boss and the new Big Boss II reloading presses have all the desirable features of the “Boss” reloading press, but are built on heavier frames with a larger ram and longer usable ram stroke for reloading the largest magnum cartridges.
- The Big Boss II now features the unique Redding “Spent Primer Collection System” used on the T-7 and Ultramag presses.
- “Spent primer collection system” – Spent primers automatically drop through the large diameter hollow ram into a handy flexible plastic tube that can hold hundreds of spent primers before emptying, or be easily routed to your trash container.
- 1” diameter ram
- Heavy duty cast iron frame with 36° offset for easy access and visibility
- Large 4-1/2″ frame opening
- 3-13/16″ of ram stroke for easy reloading of magnum cartridges
- Offset/straight pull ball handle for ease of operation
- “Smart Primer Arm” – automatically swings into position during the ram stroke and flips out of the way when not in use. For maximum sensitivity at the lowest possible leverage, priming is done at the end of the ram stroke.
- Heavy duty compound linkage
- Steel adapter bushing accepts all standard 7/8″-14 threaded dies and is removable for use with oversized dies Frame with bushing removed accepts 1-1/4″ – 12 dies
Spent Primer Collection System, available on the Boss II
ITEM No. 79XXX – Big Boss
ITEM No. 97XXX – Big Boss II
Both presses are available in kit form with shellholder, Series “A” die set (excludes Deluxe Set).
Extra Notes
Note: Big Boss Press Is supplied with “Boss” style primer catcher.
– NOTICE–
Primer Arm Assembly Update
Effective January 2020, for the convenience of our customers, all Redding Reloading presses and the optional “Slide Bar Primer Feed System” will be shipped with two primer arm assemblies, one each for both large and small primers. Each assembly will have the large or small primer cup permanently affixed and sealed. This will eliminate all assembly and adjustment that was previously required for a primer size change.
