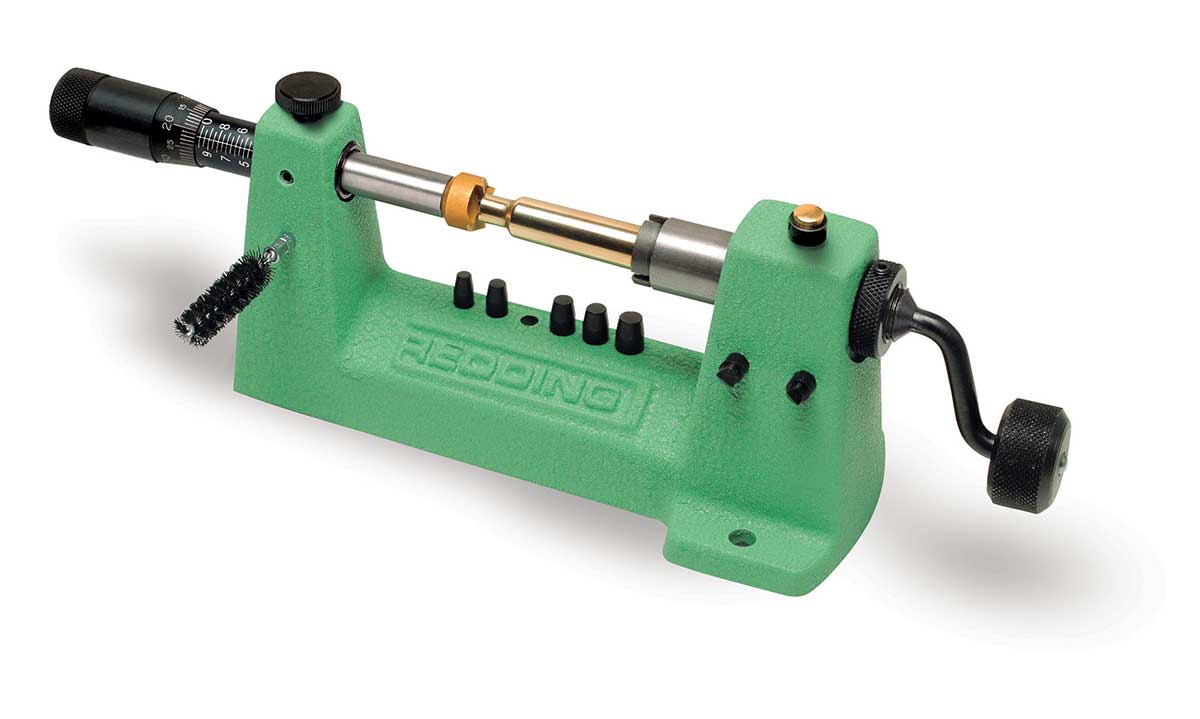

Model 2400 Match Precision Case Trimming Lathe
Product Catalog
The most noteworthy feature of the Model #2400 Case Trimming Lathe is the new Micrometer which adds precision and repeatability to the case length adjustment. Changes as little as .001″ can be easily “dialed in”. The innovative new push button chuck lock simplifies loading and unloading while facilitating perfect alignment of the case and pilot. The design of the new push button chuck lock, combined with the extended cast iron frame of the Model #1400-XT, increases case length capacity; accommodating not only the latest long action cartridges but old time classics as well.
Case Trimmer Pilots
| Caliber | Case Trimmer Pilot |
|---|---|
| 17 CAL | 15168 |
| 20 CAL | 15200 |
| 22 CAL | 15220 |
| 6MM CAL | 15239 |
| 25 CAL | 15253 |
| 6.5 CAL | 15260 |
| 270 CAL | 15273 |
| 7MM CAL | 15280 |
| 30 CAL | 15304 |
| 31 CAL | 15307 |
| 8MM CAL | 15319 |
| 338 CAL | 15334 |
| 348 CAL | 15344 |
| 35 CAL | 15354 |
| 9.3MM CAL | 15362 |
| 375 CAL | 15371 |
| 10MM CAL | 15396 |
| 40 CAL | 15400 |
| 416 CAL | 15412 |
| 44 CAL | 15426 |
| 45 CAL | 15447 |
| 458 CAL | 15454 |
| 475 CAL | 15471 |
| 50 CAL - HANDGUN | 15496 |
| 50 CAL - RIFLE | 15507 |
Features
- New micrometer with easy adjustments of .001″
- Cast iron frame to maintain precision alignment
- New push button collet is ideally suited for use with the optional power adapter
- Handles 17 to 50 Cal, up to 3-1/4″ case length
- Universal collet fits all popular cases
- TiN (Titanium Nitride) coated replaceable cutter
- Storage holes for pilots
