Case Neck Gauge, One of the most important tools you will ever use!
Product Catalog
Provides a quick and easy way to sort cases by neck wall thickness and uniformity.
This tool allows you to accurately measure the neck wall thickness of the cartridge case and determine its uniformity, (see below Tech-Talk – The Importance of Case Neck Uniformity.)

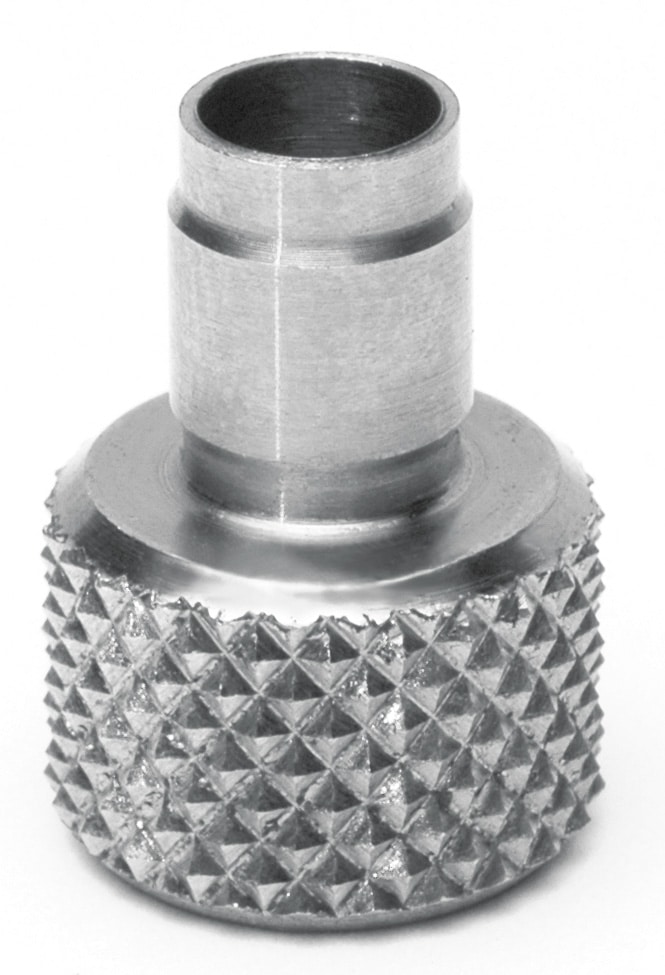

Stainless Pilot Stops
Case Neck Gauge & Flash Hole Deburring Tool
| Caliber | Stainless Pilots |
|---|---|
| 17 CAL * | 06117 |
| 20 CAL * | 06120 |
| 22 CAL * | 06121 |
| 22 CAL | 06122 |
| 6MM CAL * | 06123 |
| 6MM CAL | 06124 |
| 25 CAL | 06125 |
| 6.5 CAL | 06126 |
| 6.5 CAL * | 06129 |
| 270 CAL | 06127 |
| 7MM CAL | 06128 |
| 30 CAL | 06130 |
| 30 CAL * | 06139 |
| 31 CAL | 06131 |
| 8MM CAL | 06132 |
| 338 CAL | 06133 |
* Pilots for small diameter 9/64″ mandrels
Features
- Two mandrel sizes are supplied to allow measurement of all cases from .17 cal. to .338 cal. including cases with small (.060) flash holes. For your convenience the mounting base allows direct attachment to your reloading bench.
- Pilot stops are required for each caliber (see chart).
- Two pilot stops are supplied with the tool, ITEM No. 06121 – .22 cal. and ITEM No. – 06130, .30 cal.
Extra Notes
– Tech Talk –
- The Importance of Case Neck Uniformity
- Uniformity of case neck wall thickness is an indication of the quality of the cartridge case itself.
- Any large variation (over .0015”) in neck wall thickness will generally indicate a similar or greater variation in the body and shoulder of the case. This variation cannot be corrected and may lead to concentricity and bullet runout problems.
- Most competition shooters that have been forced to turn necks to properly fit “tight neck” chambers will confirm the following: “Turning the necks of poor quality cases will not solve the problems associated with the poor uniformity that remains within the shoulder and body of the case.”
- As in all handloading practices – uniformity is the key to accuracy.
