Premium Die Sets for Handgun Cartridges w/Metric Micrometer

Die Sets

Part #42XXX

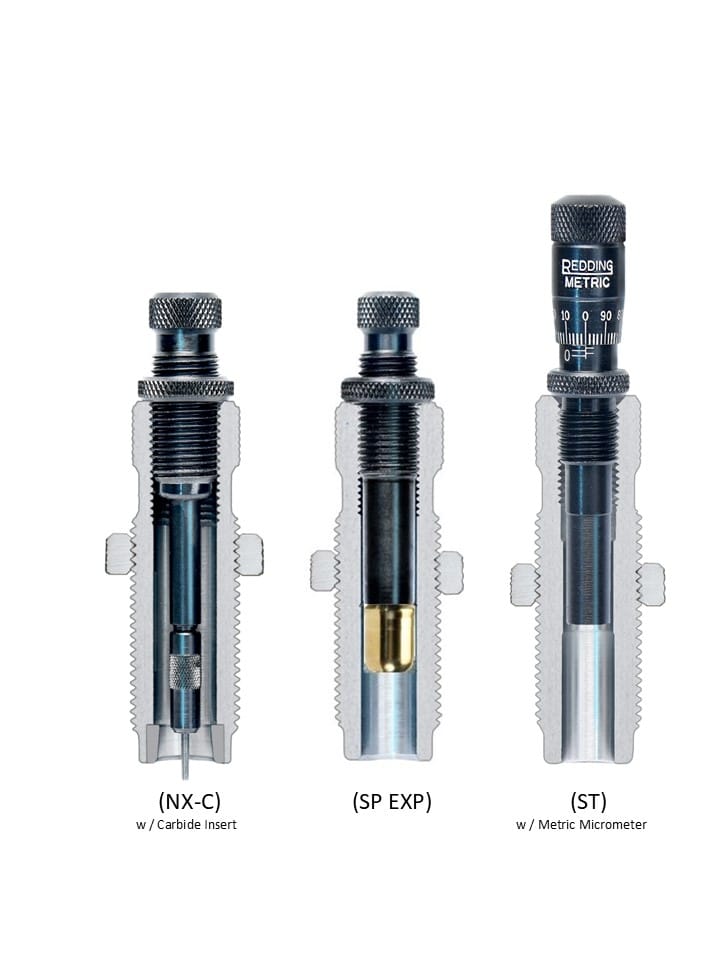

The Premium Die Set for Handgun Cartridges is a three (3) die set which contains the following; our NxGEN Carbide Sizing Die, a unique Special Expander Die and a Premium Seating Die with our Metric Bullet Seating Micrometer.

CartridgeMetric Premium Die Set
10MM AUTO42253
32 H&R MAGNUM42162
32 S&W LONG /32 H&R MAGNUM42162
32 SMITH & WESSON (Long)42162
327 FEDERAL MAGNUM42162
357 MAGNUM42184
38 SPECIAL42184
38 SPECIAL / 357 MAGNUM42184
380 AUTO42170
40 S&W / 10MM AUTO42253
40 SMITH & WESSON42253
44 REMINGTON MAGNUM42194
44 SPECIAL42194
44 SPECIAL / 44 MAGNUM42194
45 ACP 42189
45 COLT 42191
9MM LUGER42172

Features

The unique design of the special expander performs four distinct functions. The smooth entry radius is followed by the correct expanding diameter for proper press fit of the bullets. The upper section of the expanding diameter has a concentric ring which opens the case mouth slightly larger than bullet diameter to enhance bullet alignment. The final taper can provide a “bellmouth” on the case mouth when desired, usually when using lead bullets.
